30K Multi Position Air Handler Heat Pump R-454B

OUTDOOR MODEL NUMBER: UHO30-NB-LA-Q
INDOOR MODEL NUMBER: UHM30-CB-LA-Q

System Performance
  • BTU: 30K
  • SEER2: 16.8
  • EER2: 11.7
  • AHRI #: 217162460
  • HSPF2-4: 10.0
  • COP: 3.65
  • Indoor Air Flow (CFM): T-988.8 / H-894.7 / M-806.4 / L-712.2 / Q-712.2
  • Outdoor Air Flow Max. (CFM): 3001.8
  • Indoor Noise Level (DBA): T-47.0 / H-46.0 / M-43.0 / L-27.5 / Q-27.5
  • Outdoor Noise Level (DBA): 60.5
System Data
  • Indoor Power Supply: 115/208/230V,1Ph,60Hz
  • Indoor Min Circuit AMPS 115V/(208/230V): 8.0 / 6.0
  • Indoor Max Fuse AMPS: 15.0
  • Outdoor Power Supply: 208/230V,60Hz,1Ph
  • Outdoor Min Circuit AMPS: 29.5
  • Outdoor Max Fuse AMPS: 30.0
  • Communication Wiring: Mitsutomo Thermostat: 18-2  3rd Party Thermostat: 18-10
  • Liquid Size / Gas Size (in): 3/8″ / 3/4″
  • Indoor Dimensions (in) (WxDxH): 21.02 x 21.02 x 49.02
  • Outdoor Dimensions (in) (WxDxH): 37.24 x 16.14 x 31.89
  • Indoor Net / Gross WT (lbs): 128.97 / 153.44
  • Outdoor Net / Gross WT (lbs): 164.02 / 174.60
  • Max Pipe Length (ft): 164.0
  • Max Height Difference (ft): 82.0
  • Refrigerant Precharge (oz): 105.82
  • Additional Refrigerant Charge (oz per ft): 0.7 oz
  • Connection Method: Flared
  • Smartphone Adapter: Sold Separately

Description

Introducing our 30000 BTU Multi Position Air Handler Heat Pump System—a sleek and efficient solution for year-round comfort. With powerful heating and cooling capabilities, inverter technology for energy savings, and a space-saving design, this system brings advanced climate control to your home.

Key Features:

  1. Efficient Performance: Rapidly heats in winter and cools in summer with a 36000 BTU capacity.
  2. Inverter Technology: Smartly adjusts compressor speed for consistent temperatures and energy savings.
  3. Sleek Design: Modern and space-saving, blending seamlessly with any decor.
  4. Quiet Operation: Whisper-quiet technology ensures tranquility at home.
  5. Smart Controls: User-friendly remote, programmable features, and customizable settings.
  6. Energy Efficiency: Cost-effective and eco-friendly, reducing utility bills and carbon footprint.
  7. Air Purification: Built-in system filters out allergens and pollutants for a healthier indoor environment.
  8. Easy Installation: Designed for hassle-free installation, suitable for various spaces.

Upgrade to our 30000 BTU Multi Position Air Handler Heat PumpSystem—a future-ready, compact, and efficient solution for personalized comfort.

Reviews

There are no reviews yet

Add a review
30K Multi Position Air Handler Heat Pump R-454B 30K Multi Position Air Handler Heat Pump R-454B
Rating*
0/5
* Rating is required
Your review
* Review is required
Name
* Name is required
Add photos or video to your review

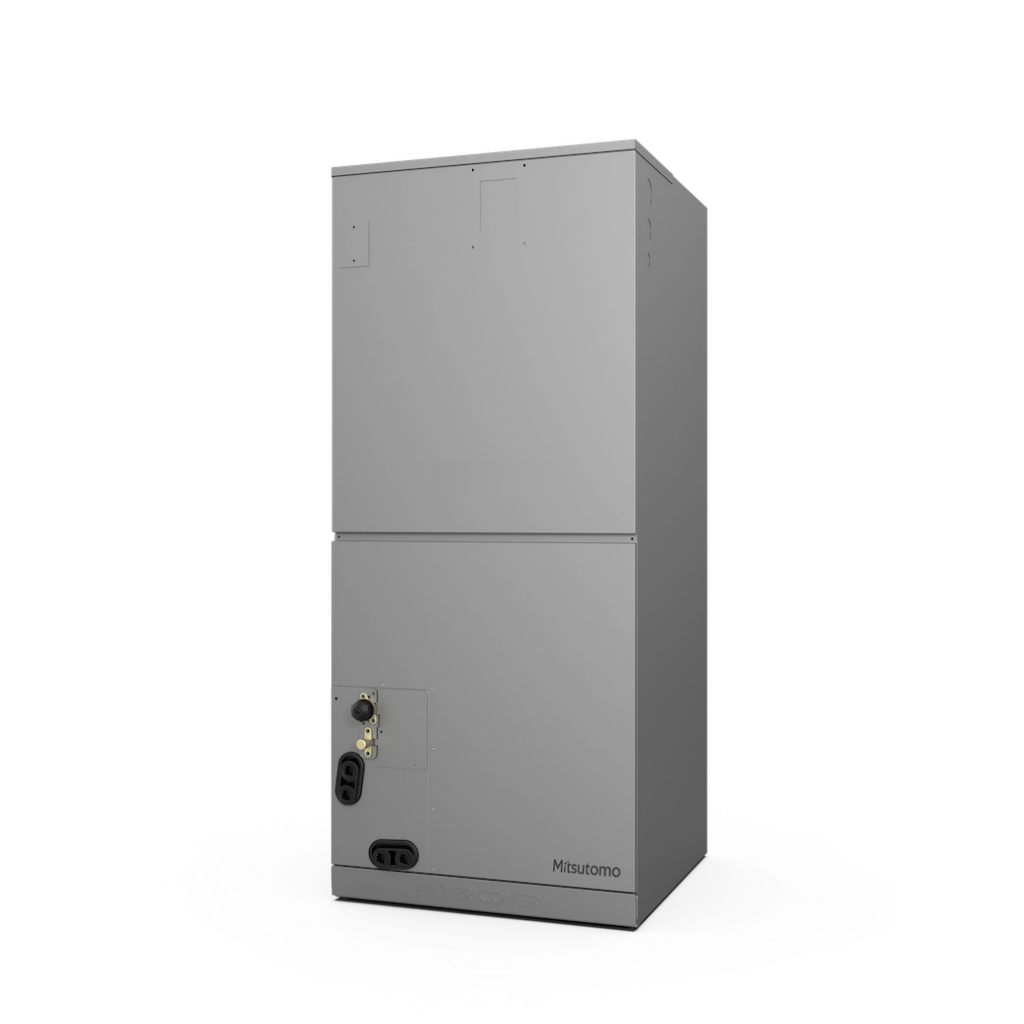

EVOX - Front Side-1
